EA DIP081-CHNLED | DISPLAY VISIONS

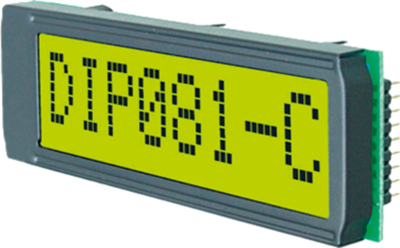

LCD text display, 1 x 8 character, STN, viewing area: 61 x 19 mm, EA DIP081-CHNLED
Unit Price (€ / pc.)
24.4188 € *
Available: 2 pcs.
Leadtime: 1 Week **
Total Price:
24.42 € *
Price list
Quantity
Price per unit*
1 pcs.
24.4188 €
5 pcs.
22.9551 €
15 pcs.
22.0745 €
50 pcs.
21.0987 €
150 pcs.
20.2181 €
*incl. VAT plus shipping costs
**Subject to prior sale
With controller (HD44780 compatible), rich-contrast supertwist LCD, program with fixed set of 192 or 240 ASCII characters, 8 additional characters for user programs, connection to 4-bit or 8-bit data bus, yellow/green backlight, integrated temperature compensation, for PCB assembly or pluggable by means of optional socket strips (2 required).
Font height: 11.48 mm.
Character set: program with fixed set of 192 characters, 8 characters for user specific programming
Supply voltage: ±2.7 V, ±3.3 V or +5.0 V
Operating temperatures: - 20 to +70 °C
Dimensions: 68 x 26.8 x 10.8 mm
Type: EA DIP081 - CHNLED
Technical specifications
| Anzeige | 1 x 8 Zeichen | |
| Betrachtungsbereich (Breite) | 61 mm | |
| Betrachtungsbereich (Höhe) | 19 mm | |
| Breite | 68 mm | |
| Dicke | 10.8 mm | |
| Hintergrundbeleuchtung | LED - gelbgrün | |
| Hintergrundfarbe | grün | |
| Höhe | 26.8 mm | |
| IC Controller/Driver | HD44780 kompatibel | |
| max. Temperatur | 70 °C | |
| min. Temperatur | -20 °C | |
| MPU Interface | 4-Bit, 8-Bit | |
| Technologie | STN |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85312095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
