EA DIP162-DN3LW | DISPLAY VISIONS
LCD text display, 2 x 16 character, STN, viewing area: 61 x 19 mm, EA DIP162-DN3LW
Unit Price (€ / pc.)
28.7266 € *
Available: 8 pcs.
Leadtime: On Request **
Total Price:
28.73 € *
Price list
Quantity
Price per unit*
1 pcs.
28.7266 €
5 pcs.
27.0011 €
15 pcs.
25.9777 €
50 pcs.
24.8234 €
150 pcs.
23.7881 €
*incl. VAT plus shipping costs
**Subject to prior sale

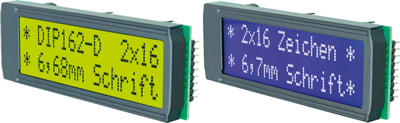

LCD modules, 2 x 16, type EA DIP162
With controller (HD44780 compatible), rich-contrast supertwist LCD, program with fixed set of 192 or 240 ASCII characters, 8 additional characters for user programs, connection to 4-bit or 8-bit data bus, yellow/green backlight, integrated temperature compensation, for PCB assembly or pluggable by means of optional socket strips (2 required).
Font height: 6.68 mm.
Character set: program with fixed set of 192 characters, 8 characters for user specific programming
Supply voltage: ±2.7 V, ±3.3 V or +5.0 V
Operating temperatures: - 20 to +70°C
Dimensions: 68 x 26.8 x 10.8 mm
Type: EA DIP162 - DN3LW
Color (font, backlight): white, blue
Technical specifications
| Anzeige | 2 x 16 Zeichen | |
| Betrachtungsbereich (Breite) | 61 mm | |
| Betrachtungsbereich (Höhe) | 19 mm | |
| Breite | 68 mm | |
| Dicke | 10.8 mm | |
| Hintergrundbeleuchtung | LED - weiß | |
| Hintergrundfarbe | blau | |
| Höhe | 26.8 mm | |
| IC Controller/Driver | HD44780 kompatibel | |
| max. Temperatur | 70 °C | |
| min. Temperatur | -20 °C | |
| MPU Interface | 4-Bit, 8-Bit | |
| Technologie | STN |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85312095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
