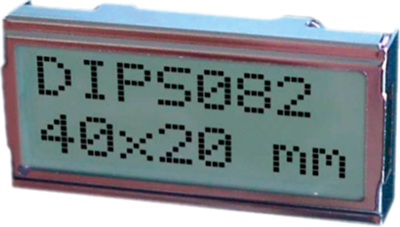

EA DIPS082-HN | DISPLAY VISIONS
LCD text display, 2 x 8 character, STN, viewing area: 36.3 x 13.9 mm, EA DIPS082-HN
Unit Price (€ / pc.)
14.2205 € *
Available: 0 pcs.
Leadtime: On Request **
LCD modules, 2 x 8, type EA DIPS082.
Font height: 5.01 mm. Character set: program with fixed set of 192 characters, 8 additional characters for user programs, for PCB mounting. Color: blue/neutral. Voltage supply: ±2.7 V, ±3.3 V or +5.0 V, 2.0 mA (50 mA with backlight). Operating temperatures: –20 to +70 °C. Dimensions: 40 x 20 x 11.5 mm (14.5 mm with backlight).
Type: EA DIPS082–HN, LCD text module
Technical specifications
| Anzeige | 2 x 8 Zeichen | |
| Betrachtungsbereich (Breite) | 36.3 mm | |
| Betrachtungsbereich (Höhe) | 13.9 mm | |
| Breite | 40 mm | |
| Dicke | 7.8 mm | |
| Hintergrundbeleuchtung | ohne | |
| Hintergrundfarbe | grün | |
| Höhe | 20 mm | |
| IC Controller/Driver | HD44780 kompatibel | |
| max. Temperatur | 70 °C | |
| min. Temperatur | -20 °C | |
| MPU Interface | 4-Bit, 8-Bit | |
| Technologie | STN |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85312095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
