EA DOGL128W-6 | DISPLAY VISIONS

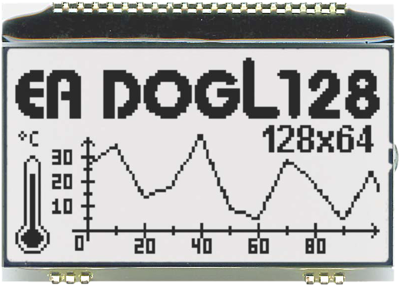

Graphic display EA DOGL128W-6, 128 x 64 pixels, 64 x 36 mm, EA DOGL128W-6
LCD graphic displays, type DISPLAY VISIONS DOGM../DOGL.
High-contrast supertwist LCD with 15 µm DOTGAP and controller with SPI interface (4-wire). Optional LED backlights in different colors for approximately 20 designs; Operating temperatures: –20 to +70 °C. Dimensions: DOGM132.. 55 x 31 x 2.0 mm (5.8 mm with backlight), DOGM128.. 55 x 46 x 2.0 mm (5.6 mm with backlight), DOGL128.. 68 x 51 x 2.8 mm (6.5 mm with backlight).
Graphic displays, type DOGM..W../DOGL..W.
Technology: FSTN positive, transflective, suitable for use with/without backlight element, readings can be taken without backlight. Display color: black on white (no backlight), black on backlight color. Recommended lighting: white, blue, RGB.
Technical attributes (type, pixels, viewing window dimensions): EA DOGL128W–6, 128 x 64 pixels, 64 x 36 mm
| Display | 128 x 64 character | |
| Viewing area (width) | 64 mm | |
| Viewing range (height) | 35.5 mm | |
| Width | 68 mm | |
| Thickness | 2.8 mm | |
| type of backlight | optional | |
| Background color | white | |
| Height | 51 mm | |
| IC controller/driver | ST7565 compatible | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| MPU interface | SPI | |
| Technology | FSTN |
| Country of origin | CN |
| Customs tariff number | 85312095 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
