EA DOGM081W-A | DISPLAY VISIONS

LCD text module EA DOGM081W-A, 1 x 8, 11.97 mm

Order No.: 73S1550
EAN: 4099879005274
MPN:
EA DOGM081W-A
Series: EA DOG
DISPLAY VISIONS
EA DOGM081W-A DISPLAY VISIONS LED-Modules

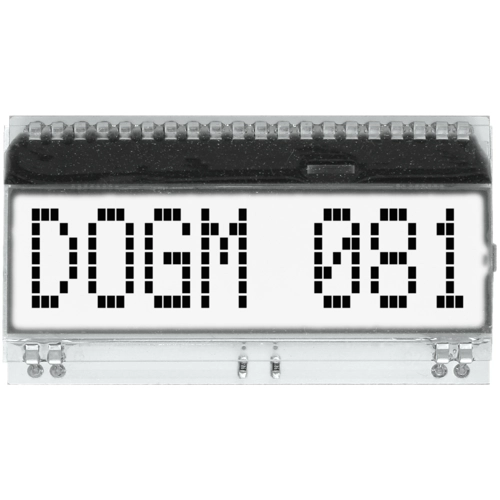

Image may differ
Unit Price (€ / pc.)
16.7076 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
16.71 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
16.7076 €

LCD text displays, type DISPLAY VISIONS DOGM.

For low-power, hand held applications, with controller for 4-bit, 8-bit and SPI interface, supertwist LCD with adjustable contrast; optional LED backlight feature in 6 colors Character set: 156 programmed characters and 8 characters for user applications. Supply voltage: +3.3 V oder +5.0 V (typically 250 µA). Operating temperatures: –20 to +70 °C, with temperature compensation. Dimensions: 55 x 31 x 2.0 mm (5.8 mm with backlight).

LCD modules, type EA DOGM...W-A.

Technology: FSTN positive, transflective, suitable for use with/without backlight element, readings can be taken without backlight. Display color: black on white (no backlight), black on backlight color. Recommended lighting: white, blue, RGB.

Technical attributes (type, lines x characters, character height): EA DOGM081W-A, 1 x 8, 11.97 mm

Technical specifications
Display 1 x 8 character
Viewing area (width) 51 mm
Viewing range (height) 14.5 mm
Width 55 mm
Thickness 2 mm
type of backlight optional
Background color white
Height 31 mm
IC controller/driver ST7036 compatible
max. operating temperature 70 °C
min. operating temperature -20 °C
MPU interface 4-Bit, 8-Bit, SPI
Technology FSTN
Logistics
Country of origin CN
Customs tariff number 85312095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
