EA DOGM128W-6 | DISPLAY VISIONS

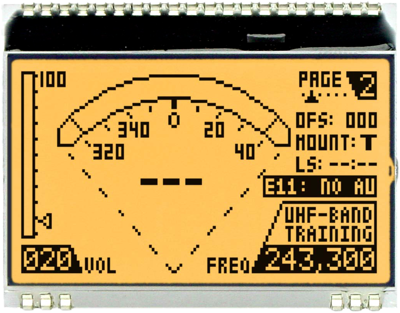

Graphic display, 128 x 64 character, FSTN, viewing area: 51 x 31 mm, EA DOGM128W-6
LCD graphic displays, type DISPLAY VISIONS DOGM../DOGL.
High-contrast supertwist LCD with 15 µm DOTGAP and controller with SPI interface (4-wire). Optional LED backlights in different colors for approximately 20 designs; Operating temperatures: –20 to +70 °C. Dimensions: DOGM132.. 55 x 31 x 2.0 mm (5.8 mm with backlight), DOGM128.. 55 x 46 x 2.0 mm (5.6 mm with backlight), DOGL128.. 68 x 51 x 2.8 mm (6.5 mm with backlight).
Graphic displays, type DOGM..W../DOGL..W.
Technology: FSTN positive, transflective, suitable for use with/without backlight element, readings can be taken without backlight. Display color: black on white (no backlight), black on backlight color. Recommended lighting: white, blue, RGB.
Technical attributes (type, pixels, viewing window dimensions): EA DOGM128W–6, 128 x 64 pixels, 51 x 31 mm
| Anzeige | 128 x 64 Zeichen | |
| Betrachtungsbereich (Breite) | 51 mm | |
| Betrachtungsbereich (Höhe) | 31 mm | |
| Breite | 55 mm | |
| Dicke | 2 mm | |
| Hintergrundbeleuchtung | optional | |
| Hintergrundfarbe | weiß | |
| Höhe | 46 mm | |
| IC Controller/Driver | ST7565 kompatibel | |
| max. Temperatur | 70 °C | |
| min. Temperatur | -20 °C | |
| MPU Interface | SPI | |
| Technologie | FSTN |
| Ursprungsland | CN |
| Zolltarifnummer | 85312095 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
