EA DOGM163L-A | DISPLAY VISIONS

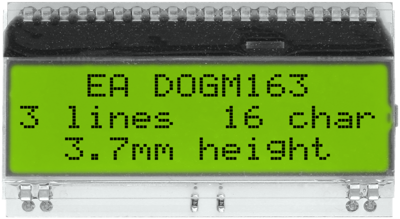

LCD text module EA DOGM163L-A, 3 x 16 characters, 3.65 mm
Unit Price (€ / pc.)
15.8627 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
15.86 € *
Price list
Quantity
Price per unit*
1 pcs.
15.8627 €
10 pcs.
13.9706 €
50 pcs.
13.0186 €
150 pcs.
12.4236 €
500 pcs.
11.8048 €
*incl. VAT plus shipping costs
**Subject to prior sale
LCD text displays, type DISPLAY VISIONS DOGM.
For low-power, hand held applications, with controller for 4-bit, 8-bit and SPI interface, supertwist LCD with adjustable contrast; optional LED backlight feature in 6 colors Character set: 156 programmed characters and 8 characters for user applications. Supply voltage: +3.3 V oder +5.0 V (typically 250 µA). Operating temperatures: –20 to +70 °C, with temperature compensation. Dimensions: 55 x 31 x 2.0 mm (5.8 mm with backlight).
LCD modules, type EA DOGM...L-A.
Technology: STN positive, reflective, no backlight possible. Display color: dark green on yellow/green.
Technical attributes (type, lines x characters, character height): EA DOGM163L-A, 3 x 16 characters, 3.65 mm
Technical specifications
| Display | 3 x 16 character | |
| Viewing area (width) | 51 mm | |
| Viewing range (height) | 14.5 mm | |
| Width | 55 mm | |
| Thickness | 2 mm | |
| type of backlight | without | |
| Background color | green | |
| Height | 31 mm | |
| IC controller/driver | ST7036 compatible | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| MPU interface | 4-Bit, 8-Bit, SPI | |
| Technology | STN |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85312095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
