EA DOGM163W-A | DISPLAY VISIONS

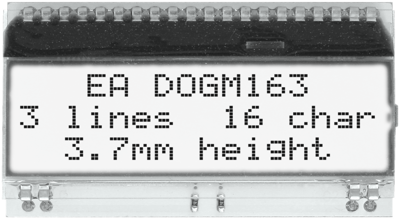

LCD text display, 3 x 16 character, FSTN, viewing area: 51 x 14.5 mm, EA DOGM163W-A
LCD text displays, type DISPLAY VISIONS DOGM.
For low-power, hand held applications, with controller for 4-bit, 8-bit and SPI interface, supertwist LCD with adjustable contrast; optional LED backlight feature in 6 colors Character set: 156 programmed characters and 8 characters for user applications. Supply voltage: +3.3 V oder +5.0 V (typically 250 µA). Operating temperatures: –20 to +70 °C, with temperature compensation. Dimensions: 55 x 31 x 2.0 mm (5.8 mm with backlight).
LCD modules, type EA DOGM...W-A.
Technology: FSTN positive, transflective, suitable for use with/without backlight element, readings can be taken without backlight. Display color: black on white (no backlight), black on backlight color. Recommended lighting: white, blue, RGB.
Technical attributes (type, lines x characters, character height): EA DOGM163W-A, 3 x 16, 3.65 mm
| Anzeige | 3 x 16 Zeichen | |
| Betrachtungsbereich (Breite) | 51 mm | |
| Betrachtungsbereich (Höhe) | 14.5 mm | |
| Breite | 55 mm | |
| Dicke | 2 mm | |
| Hintergrundbeleuchtung | optional | |
| Hintergrundfarbe | weiß | |
| Höhe | 31 mm | |
| IC Controller/Driver | ST7036 kompatibel | |
| max. Temperatur | 70 °C | |
| min. Temperatur | -20 °C | |
| MPU Interface | 4-Bit, 8-Bit, SPI | |
| Technologie | FSTN | |
| Zeichensatz | Englisch-Japanisch |
| Ursprungsland | CN |
| Zolltarifnummer | 85312095 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
