EA EDIP320J-8LWT | DISPLAY VISIONS

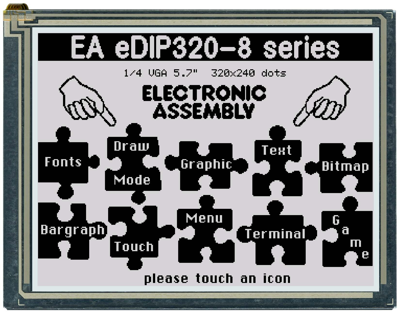

LCD graphic display with touch panel, EA EDIP320J-8LWT
LCD graphic displays with touch panel, type DISPLAY VISIONS eDIP.
8 predefined fonts, positioning of all functions (straight, dot, range, bar graph..) at pixel resolution, clipboard functionality, pull-down menus, mixed mode text and graphic, flashing attributes (on/of, inverse flashing); Touch panel: analog, with variable grid, programmable keys and switches, adjustable LED backlight. On-board interface: RS-232, I2C bus and SPI bus. Supply voltage: +5.0 V, typically 75/210 mA (with/without backlight).
5.7" graphic displays with 320 x 240 pixels, type EA eDIP320.
Font zoom: from approx. 2.0 to 80 mm, can be rotated in steps of 90°. Internal memory: up to 16 pages with 256 images, up to 16 pages with 768 macros can be programmed, with power-down mode. Dimensions: 137.8 x 105.3 x 11.6 mm.
Type: EA eDIP320J–8LWTP, black–white
| Display | 320 x 240 character | |
| Viewing area (width) | 121 mm | |
| Viewing range (height) | 92.6 mm | |
| Width | 1378 mm | |
| Thickness | 11.6 mm | |
| type of backlight | LED - white | |
| Background color | white | |
| Height | 1053 mm | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| MPU interface | I²C, RS-232, RS-485, SPI | |
| Technology | FSTN |
| Country of origin | TW |
| Customs tariff number | 85312095 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
