LDA 4 | Distelkamp

Solder fume extraction LDA4

Order No.: 10L7380
EAN: 4099891404338
MPN:
LDA 4
Series: LDA
Distelkamp

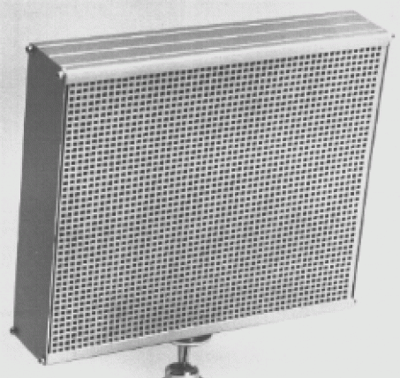

LDA 4 Distelkamp Fume Extraction
Image may differ
Unit Price (€ / pc.)
209.44 € *
Available: 1 pcs.
Leadtime: 1 Week **
Total Price:
209.44 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
209.44 €

Pollutant absorber, LDA 4, DISTELKAMP

Due to the use of 4 low-noise fans (whisper fans), the noise level is only 36 dBA. This makes the LDA 4 the quietest absorber on the market. The 4 fans cause an even air flow over the entire surface of 260 x 220mm. By a new technology we succeeded in reaching an air flow of 320m³/h with a power consumption of only 16W. The service life of the filter is approximately 4-6 weeks with a daily use of 8 hours. Due to the high air flow rate with minimal noise, this device is suitable for almost all workplaces. The absorber LDA 4 works with 12 volts and is supplied with power supply and EURO plug.

Technical specifications
Width 55 mm
Height 230 mm
Length 260 mm
Power 16 W
Sound pressure level 36 db
Voltage 220-240 V
Volume flow 320 m³/h
Logistics
Country of origin DE
Customs tariff number 84145100
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
