0009278 | DOLD

Impulse switch, 1 Form A (N/O), 24 VDC, 16 A, 230 V, 2000 W, 0009278

Order No.: 90P0076
EAN: 4030641092788
MPN:
0009278
IK8800.01 DC24V
0009278 DOLD Impulse Switches and Dimmer

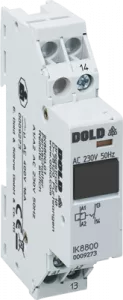

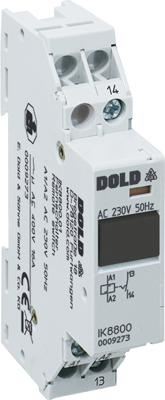

Image may differ
Unit Price (€ / pc.)
54.5972 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
54.60 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
54.5972 €

Remote switch, 0009278, DOLD

The 0009278 is a remote switch optionally with up to max. 4 changeover contacts. The contacts are actuated with every current pulse and they stay in the operating position they have adopted in each case until the next pulse occurs. It is possible to actuate the contacts manually by pressing a pushbutton provided on the unit. The contact position is shown by an indicator. The units can be installed in rows close next to each other for pulse operation. The gap between the relays is 7 mm when they are on permanently.

Features

  • Impulse operation
  • Pushbutton for manual actuation of the contacts
  • Operating position display
  • Low energy consumption by impulse operation
  • Small amount of wiring required at installations with serval local push buttons
Technical specifications
Latching switching function 1 Schließer
Control Voltage 24 VDC
Rated current 16 A
Rated voltage (AC) 230 V
Lamp wattage 2000 W
On Period 100 % ED
Size 17,5 x 89 x 58 mm
Assembly DIN-Schiene
Dimmable No
Logistics
Country of origin DE
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
