0051230 | DOLD

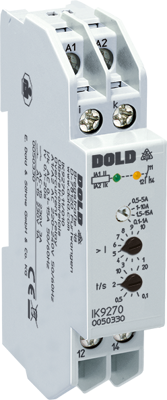

Overcurrent relay, 0.1-15 A 0.1-20 s, 220-240 VAC, 1 Form C (NO/NC), 0051230

Order No.: 90P0018
EAN: 4030641512309
MPN:
0051230
IK9270.11 AC 220 - 240V 0,1 - 15A Tv = 0,1 - 20S.
DOLD
0051230 DOLD Monitoring Relays
Image may differ
Print
Key Specification:
Version 0.1-15 A 0.1-20 s, 220-240 VAC
Contact type 1 Form C (NO/NC)
Download Datasheet Technical specifications
Unit Price (€ / pc.)
222.2206 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Add to Cart
Total Price:
222.22 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
222.2206 €
Description
Technical specifications
Download
Logistics
Compliance

Overcurrent relay, 0051230, DOLD

The 0051230 is a  overcurrent relay suitable for monitoring currents in three-phase and alternating current networks. When the switching point is exceeded, the relays changed their state after the time lapse. Due to the adjustable switching point, this relays is universally applicable. By means of the adjustable time delay, current peaks can be taken into account or faded out if required. Readiness for operation and overcurrent are each signaled via an LED.

Features

  • Settable response value
  • Fixed hysteresis
  • Settable time delay
  • De-energized on trip
  • Auxiliary supply and measuring input galvanic separated
Technical specifications
Version 0.1-15 A 0.1-20 s, 220-240 VAC
Contact type 1 Form C (NO/NC)
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85364900
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
