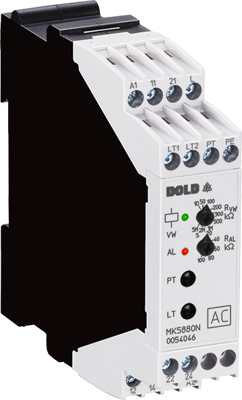

Insulation monitoring relay, 1-100 kΩ, 220-240 VAC, 2x1 Form C (NO/NC), 0054046
Order No.: 90P0102
EAN: 4030641540463
MPN:
0054046
MK5880N.38/200
Unit Price (€ / pc.)
293.454 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Insulation monitor, 0054046, DOLD
The 0054046 provides best insulation monitoring of pure three-phase and AC IT systems in a state of the art way fulfilling the relevant standards. The adjustment of the setting values is simple and user friendly done on 2 rotary switches on the front of the device.
Features
- De-energized on trip
- Manual and auto reset
- Connections for external test and reset buttons possible
- LED indicators for operation and alarm
Technical specifications
| Connection | screw connection | |
| Version | 1-100 kΩ, 220-240 VAC | |
| Contact type | 2x1 Form C (NO/NC) |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
