0058247 | DOLD
Tow-hand safety relay, 3 Form A (N/O) + 1 Form B (N/C), 24 VDC, 0058247
Order No.: 90P0198
EAN: 4030641582470
MPN:
0058247
LG5933.48 DC24V
Unit Price (€ / pc.)
319.515 € *
Available: 0 pcs.
Leadtime: 2 Weeks **

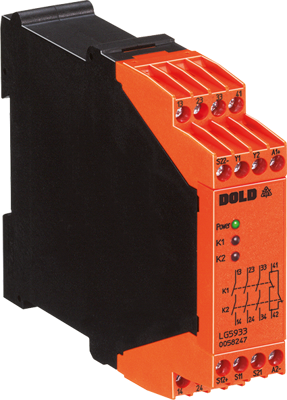

Two-hand safety relay, 0058247, DOLD
The 0058247 enables and disables a safety circuit in a safe way. It is used to protect people and machines in applications with 2-hand buttons on presses for metal products as well as for other production machinery with dangerous closing movements.
Features
- Cost reduction by replacing conventional contactor circuits
- Compact, ready to connect 2-hand safety circuit
- Overvoltage and short circuit protection
Technical specifications
| Version | tow-hand safety relay | |
| Width | 22.5 mm | |
| Input voltage AC | 24 VDC | |
| Height | 90 mm | |
| Contact type | 3 Form A (N/O) + 1 Form B (N/C) | |
| Assembly | DIN rail | |
| Depth | 121 mm | |
| Type of Use | protection of persons and machines |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
