0065426 | DOLD

Multifunctional safety module, 2 Form A (N/O) per safety function, 24 VDC, 0065426

Order No.: 90P0123
EAN: 4030641654269
MPN:
0065426
UG6970.04PS/61 DC24V
0065426 DOLD Safety relays

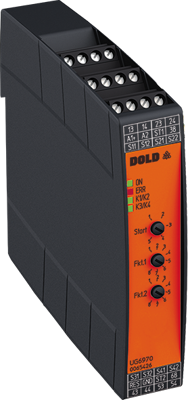

Image may differ
Unit Price (€ / pc.)
492.0412 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
492.04 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
492.0412 €

Multifunctional safety module, 0065426, DOLD

The 0065426 provides protection of men and machines by enabling and disabling a safety circuit. It is used together with e-stop buttons, safety gates, light curtains with self testing to IEC/EN 61496-1, 2-hand buttons on presses for metal processing and productions machines with dangerous closing movements and safety mats, edges and tape switches. Simply select 2 out of 6 safety functions on rotary switches - ready. This reduces divers types of safety modules in stock and simplifies your disposition.

Features

  • Line fault detection on On-button
  • Forcibly guided output contacts
  • 2-channel
  • Protection against manipulation by sealable transparent cover
Technical specifications
Version Multifunktionales Sicherheitsmodul
Contact type 2 Schließer pro Sicherheitsfunktion
Input voltage AC 24 VDC
Type of Use Schutz von Personen und Maschinen
Assembly Hutschiene
Width 22.5 mm
Height 110 mm
Depth 120.3 mm
Logistics
Country of origin DE
Customs tariff number 85364900
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
