0068316 | DOLD

Emergency stop module, 2 Form A (N/O), 8 to 36 VDC, 0068316

Order No.: 90P0016
EAN: 4030641683160
MPN:
0068316
UF6925.02/61 DC8-36V
0068316 DOLD Safety relays
Image may differ
Unit Price (€ / pc.)
231.931 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
231.93 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
231.931 €

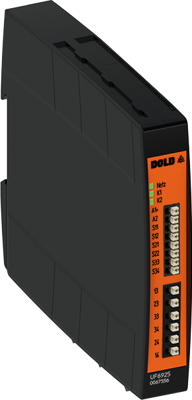

Emergency stop module, 0068316, DOLD

The 0068316 is an emergency stop module suitable to protect men and machine by safety related enabling or disabling of a safety circuit. It is used in applications with e-stop buttons and safety gates.

Features

  • 2-channel operation
  • Forcibly guided output contacts
  • Space saving
  • Connection front side
  • Line fault detection on On-button

Applications

  • Emergency stop circuits on machines
  • Monitoring of position switches on a safety gate
Technical specifications
Version Not-Aus-Modul
Contact type 2 Schließer
Input voltage AC 8 bis 36 VDC
Type of Use Schutz von Personen und Maschinen
Assembly Hutschiene
Width 17.5 mm
Height 110 mm
Depth 120 mm
Logistics
Country of origin DE
Customs tariff number 85364900
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
