0057583 | DOLD

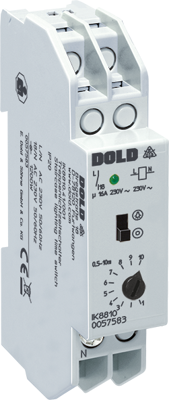

Staircase timer switch, 0.5 to 10 min, 1 Form A (N/O), 230 VAC, 0057583

Order No.: 90P0170
EAN: 4030641575830
MPN:
0057583
IK8810.41/001
DOLD
0057583 DOLD Time Relays
Image may differ
Print
Key Specification:
Time display 0,5 bis 10 min
Contact type 1 Schließer
Voltage 230 VAC
Download Datasheet Technical specifications
Unit Price (€ / pc.)
78.064 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
78.06 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
78.064 €
Description
Technical specifications
Download
Logistics
Compliance

Staircase lighting time switch, 0057583, DOLD

The 0057583 is a staircase lighting time switch that has an adjustable running time and can be switched to continuous lightning by means of a slide switch.

Features

  • Can be retriggered
  • With pre-warning shortly before end of time
  • Switch for continuous light on unit
  • Energy saving
  • Increase of the service life of the lamps

Applications

  • Staircase lighting time switch
  • Timer, release delay
Technical specifications
Contact type 1 Schließer
Voltage 230 VAC
Time display 0,5 bis 10 min
Articles of same specification 0
Logistics
Country of origin DE
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
