DERAY-IOK 3X15/0,75 SCHWARZ | DSG-CANUSA
Insulating cap, inside Ø 3 mm, L 15 mm, black, PVC, -35 to 85 °C, DERAY-IOK 3X15/0,75 SCHWARZ
Unit Price (€ / pck.)
7.0924 € *
Available: 32 pck.
Leadtime: 6 Weeks **
Total Price:
7.09 € *
Price list
Quantity
Price per unit*
1 pck.
7.0924 €
10 pck.
6.5688 €
25 pck.
6.0333 €
50 pck.
5.6763 €
100 pck.
5.3312 €
*incl. VAT plus shipping costs
**Subject to prior sale
PVC insulated caps, type DSG-CANUSA DERAY-IOK.
Flexible, made of soft PVC, lead- and cadmium-free, self-extinguishing. For permanent cable end insulation; Dielectric strength: min. 18 kV/mm. Specific contact resistance: 10 Gohm x cm/min. Continuous operating temperature: –35 to +85 °C.

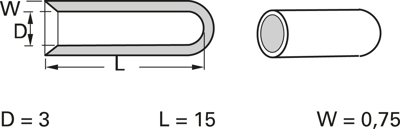

Technical attributes (type, inner diameter (ID), length (L), wall thickness (W), color. Order multiple: package of 100 items): IOK, ID 3.0, L 15, W 0.75 mm, black
Technical specifications
| Version | Isolierkappe | |
| Colour | schwarz | |
| Inner diameter | 3 mm | |
| Length | 15 mm | |
| Material | PVC | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -35 °C | |
| Wall thickness | 0.75 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39042200 |
| Original Packaging | Beutel mit 100 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
