DERAY-IOK 3X15/0,75 TRANSPARENT | DSG-CANUSA
Insulating cap, inside Ø 3 mm, L 15 mm, transparent, PVC, -35 to 85 °C, DERAY-IOK 3X15/0,75 TRANSPARENT
Order No.: 90F604
EAN: 4099891194529
MPN:
DERAY-IOK 3X15/0,75 TRANSPARENT
9910315012
Series: DERAY-IOK
Unit Price (€ / pck.)
6.5926 € *
Available: 21 pck.
Leadtime: 1 Week **
Total Price:
6.59 € *
Price list
Quantity
Price per unit*
1 pck.
6.5926 €
10 pck.
6.1047 €
25 pck.
5.6049 €
50 pck.
5.2717 €
100 pck.
4.9504 €
*incl. VAT plus shipping costs
**Subject to prior sale
PVC insulated caps, type DSG-CANUSA DERAY-IOK.
Flexible, made of soft PVC, lead- and cadmium-free, self-extinguishing. For permanent cable end insulation; Dielectric strength: min. 18 kV/mm. Specific contact resistance: 10 Gohm x cm/min. Continuous operating temperature: –35 to +85 °C.

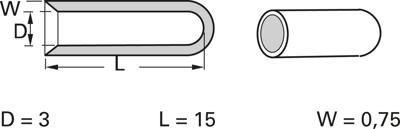

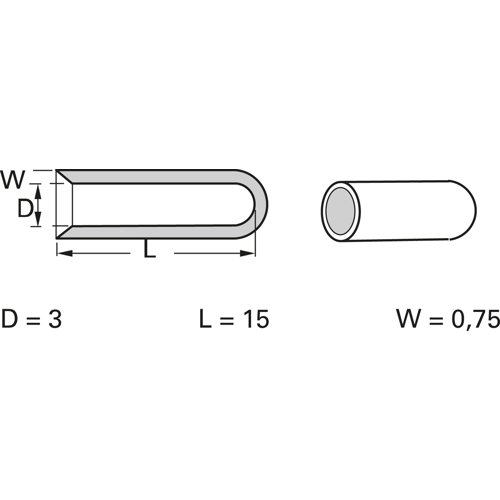

Technical attributes (type, inner diameter (ID), length (L), wall thickness (W), color. Order multiple: package of 100 items): IOK, ID 3.0, L 15, W 0.75 mm, translucent
Technical specifications
| Version | insulating cap | |
| Colour | transparent | |
| Inner diameter | 3 mm | |
| Length | 15 mm | |
| Material | PVC | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -35 °C | |
| Wall thickness | 0.75 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39042200 |
| Original Packaging | Bag with 100 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
