DERAY-IOK 5X20/1,0 ROT | DSG-CANUSA

Insulating cap, inside Ø 5 mm, L 20 mm, red, PVC, -35 to 85 °C, DERAY-IOK 5X20/1,0 ROT

Order No.: 90F622
EAN: 4099891194574
MPN:
DERAY-IOK 5X20/1,0 ROT
9910050300
Series: DERAY-IOK
DERAY-IOK 5X20/1,0 ROT DSG-CANUSA Insulating Tubes
Image may differ
Unit Price (€ / pck.)
9.0678 € *
Available: 44 pck.
Leadtime: 18 Weeks **
Total Price:
9.07 € *
Price list
Quantity
Price per unit*
1 pck.
9.0678 €
10 pck.
8.3895 €
25 pck.
7.7112 €
50 pck.
7.2590 €
100 pck.
6.8068 €
*incl. VAT plus shipping costs
**Subject to prior sale

PVC insulated caps, type DSG-CANUSA DERAY-IOK.

Flexible, made of soft PVC, lead- and cadmium-free, self-extinguishing. For permanent cable end insulation; Dielectric strength: min. 18 kV/mm. Specific contact resistance: 10 Gohm x cm/min. Continuous operating temperature: –35 to +85 °C.

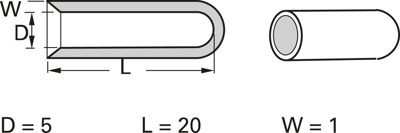

Technical attributes (type, inner diameter (ID), length (L), wall thickness (W), color. Order multiple: package of 100 items): IOK, ID 5.0, L 20, W 1.0 mm, red

Technical specifications
Ausführung Isolierkappe
Farbe rot
Innendurchmesser 5 mm
Länge 20 mm
Material PVC
max. Temperatur 85 °C
min. Temperatur -35 °C
Wanddicke 1 mm
Logistics
Ursprungsland DE
Zolltarifnummer 39042200
Originalverpackung Beutel mit 100 Stück
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
