7934100302 | DSG-CANUSA
Insulated flat plug sleeve, 6.3 x 0.8 mm, 0.5 to 1.5 mm², AWG 22 to 18, brass, red, 7934100302
Unit Price (€ / pc.)
0.9520 € *
Available: 95 pcs.
Leadtime: 12 Weeks **
Total Price:
0.95 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9520 €
10 pcs.
0.8568 €
100 pcs.
0.7616 €
500 pcs.
0.6664 €
1000 pcs.
0.5712 €
*incl. VAT plus shipping costs
**Subject to prior sale

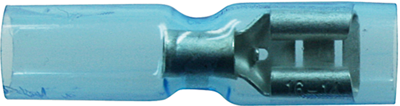

Tab terminals, with heatshrink tubing with adhesive lining, type DSG-CANUSA Crimpseal II 7934.
Mating width: 6.3 mm. Mating thickness: 0.8 mm. For strain-resistant, moisture-proof crimping of stripped cables using any standard crimp tool. Shrinking temperature: min. +100 °C. Operating temperatures: - 55 to +125 °C. Preshrinking/post-shrinking diameter: 6.5/1.4 mm.
Technical attributes:
Type: 100302, for conductor cross-section: 0.5 to 1.5 mm², color code: red.
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 22 to 18 | |
| Insulation colour | red | |
| Suitable for | 6.3 x 0.8 mm | |
| Isolated | Yes | |
| Cable cross-section | 0.5 to 1.5 mm² | |
| Material | brass |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
