7934200502 | DSG-CANUSA

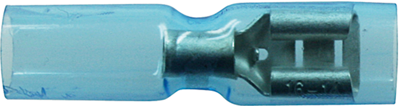

Insulated flat plug sleeve, 6.3 x 0.8 mm, 1.5 to 2.5 mm², AWG 16 to 14, brass, blue, 7934200502

Order No.: 07F285
EAN: 4099889618730
MPN:
7934200502
7934200502
Series: CrimpSeal II
7934200502 DSG-CANUSA Receptacles
Image may differ
Unit Price (€ / pc.)
0.7378 € *
Available: 130 pcs.
Leadtime: 10 Weeks **
Total Price:
0.74 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7378 €
10 pcs.
0.6664 €
100 pcs.
0.6069 €
500 pcs.
0.5236 €
1000 pcs.
0.4641 €
*incl. VAT plus shipping costs
**Subject to prior sale

Insulated flat plug sleeve, 7934200502, DSG-CANUSA

Tab terminals, with heatshrink tubing with adhesive lining.

Mating width: 6.3 mm. Mating thickness: 0.8 mm. For strain-resistant, moisture-proof crimping of stripped cables using any standard crimp tool. Shrinking temperature: min. +100 °C. Operating temperatures: - 55 to +125 °C. Preshrinking/post-shrinking diameter: 6.5/1.8 mm.

Technical specifications
Anschluss Crimpanschluss
Ausführung Flachsteckhülse
AWG-Leiterquerschnitt AWG 16 bis 14
Farbe der Isolation blau
Geeignet für 6,3 x 0,8 mm
Isoliert Yes
Leiterquerschnitt 1,5 bis 2,5 mm²
Material Messing
Logistics
Ursprungsland DE
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
