2-5700-IG1-P10-1A | E-T-A
Thermal circuit breaker, 1 pole, 1 A, 28 V (DC), 250 V (AC), faston plug 6.3 x 0.8 mm, central Mounting, IP40, 2-5700-IG1-P10-1A
Unit Price (€ / pc.)
19.4803 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
19.48 € *
Price list
Quantity
Price per unit*
10 pcs.
19.4803 €
50 pcs.
18.2665 €
100 pcs.
16.4339 €
*incl. VAT plus shipping costs
**Subject to prior sale

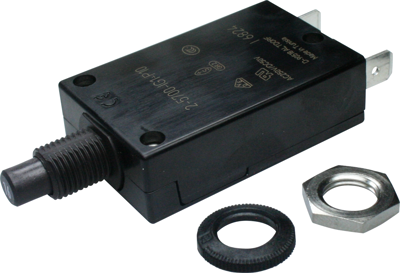

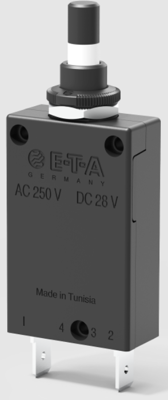

Device circuit breaker, 2-5700-IG1-P10-1A, E-T-A
The 2-5700-IG1-P10-1A is a single-pole, thermal circuit breaker that comes with a small design. It has a reliable switching behavior due to snap-action mechanism and uninfluenced free tripping.
Features
- High dielectric strength
- High rated current range
Applications
- Electric motors
- Charging rectifiers
- Transformers
- Household and office machines
- Electrical tools
- Automotive wiring systems
Technical specifications
| Anschluss | Flachstecker 6,3 x 0,8 mm | |
| Befestigungsart | Zentralbefestigung | |
| Betätiger | Druckknopf | |
| Nennspannung (AC) | 250 V | |
| Nennspannung (DC) | 28 V | |
| Nennstrom | 1 A | |
| Polzahl | 1-polig | |
| Schutzart (IP) | IP40 |
Download
Logistics
| Ursprungsland | TN |
| Zolltarifnummer | 85362010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
