4130-G411-K4M1-80A | E-T-A
Thermal circuit breaker, 1 pole, M characteristic, 80 A, 50 V (DC), 240 V (AC), screw connection, threaded fastening, IP40, 4130-G411-K4M1-80A
Unit Price (€ / pc.)
40.1982 € *
Available: 0 pcs.
Leadtime: On Request **

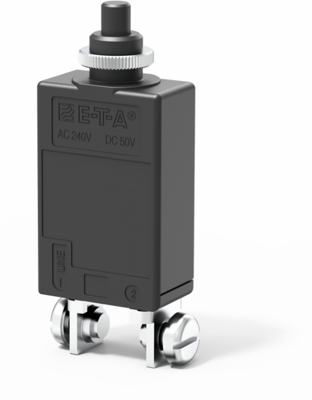

High performance thermal circuit breaker, 4130-G411-K4M1-80A, E-T-A
Single pole high performance thermal circuit breaker, with push-to-reset tease free, trip-free snap action mechanism. Designed for threadneck panel mounting and for applications with a high fault current switching requirement.
Applications
- Motors
- Transformers
- Solenoids
- Battery chargers
- Power supplies
- Appliances
- Machinery
Technical specifications
| Anschluss | Schraubanschluss | |
| Auslösecharakteristik | M | |
| Befestigungsart | Gewindebefestigung | |
| Betätiger | Druckknopf | |
| Nennspannung (AC) | 240 V | |
| Nennspannung (DC) | 50 V | |
| Nennstrom | 80 A | |
| Polzahl | 1-polig | |
| Schutzart (IP) | IP40 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85362090 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
