EA-PS 10360-30 2U | EA-Elektroautomatik
Programmable laboratory power supply, 0 bis 360 V, outputs: 1 (30 A), 0 to 30 A, 3000 W, 110-240 V, EA-PS 10360-30 2U
Order No.: 26K9249
EAN: 4099891622800
MPN:
EA-PS 10360-30 2U
0...360V 0...30A 3000W
Series: EA-PS 10000
Unit Price (€ / pc.)
4,698.12 € *
Available: 0 pcs.
Leadtime: 8 Weeks **

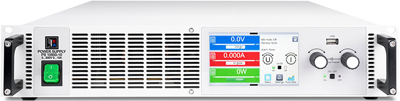

Programmable DC-Power Supply, EA-PS 10360-30 2U, EA-Elektroautomatik
Features
- Active Power-Factor-Correction, typical 0.99
- Flexible power regulated DC output stages (autoranging)
- Regulation mode CV, CC, CP with fast crossover
- Color 5" TFT display with touch control and intuitive user interface
- Command languages and drivers: SCPI and ModBus, LabVIEW, IVI
- Digital regulation, high resolution with 16bit ADCs and DACs, selection of control speed: Normal, Fast, Slow
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 0 bis 360 V | |
| Ausgangsstrom | 30 A | |
| Breite | 482.6 mm | |
| Eingangsspannungsbereich | 110-240 V | |
| Höhe | 88 mm | |
| Leistung | 3000 W | |
| Tiefe | 462 mm | |
| Wirkungsgrad | 94.5 % | |
| Ausgangsstrombereich | 0 bis 30 A |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85043200 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
