EA-PS-524-11T | EA-Elektroautomatik
Fixed voltage power supply, 22 bis 29 VDC, outputs: 1 (10.5 A), 300 W, 90-264 VAC, EA-PS-524-11T
Unit Price (€ / pc.)
220.15 € *
Available: 0 pcs.
Leadtime: 2 Weeks **

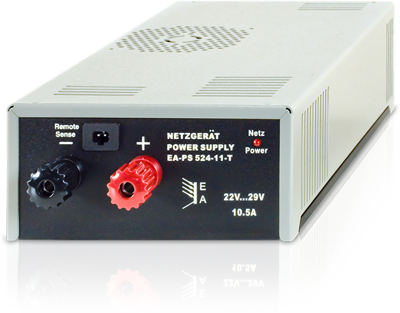

Fixed voltage power supply, EA-PS-524-11T, EA-Elektroautomatik
This fixed output power suppliy is designed for operation of equipment requiring a stable DC supply. The mounting bracket is detachable. A temperature controlled fan ensures appropriate cooling. The output current limitation works according to an U-I characteristic and enables the units to be used also for parallel standby operation.
Features
- Output voltage adjustable
- Remote sensing input
- Overload- and short-circuit-proof
- Overtemperature protection (OT)
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 22 bis 29 VDC | |
| Ausgangsstrom | 10.5 A | |
| Breite | 110 mm | |
| Eingangsspannungsbereich | 90-264 VAC | |
| Höhe | 58 mm | |
| Leistung | 300 W | |
| Tiefe | 226 mm |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85043121 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 6/8/11 |
| SVHC frei | Yes |
