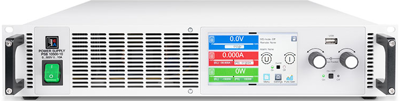

EA-PSB 10750-06 2U | EA-Elektroautomatik
Programmable laboratory power supply, 0 bis 750 V, outputs: 1 (6 A), 0 to 6 A, 1500 W, 110-240 V, EA-PSB 10750-06 2U
Order No.: 26K9217
EAN: 4099891622480
MPN:
EA-PSB 10750-06 2U
0...750V +-0...6A +-1500W
Series: EA-PSB 10000
Unit Price (€ / pc.)
6,176.10 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Programmable bidirectional DC-Power supply, EA-PSB 10750-06 2U, EA-Elektroautomatik
Features
- Active Power-Factor-Correction, typical 0.99
- Bidirectional power supply, 2 quadrants in source and sink
- In load operation, regenerative with energy recovery into the grid
- Flexible power regulated DC input/output stages (autoranging)
- Regulation mode CV, CC, CP, CR with fast crossover
- Digital regulation, high resolution with 16bit ADCs and DACs
- Color 5" TFT display with touch control and intuitive user interface
- Integrated function generator with predefined curves
- Integrated battery test mode, battery and fuel cell simulation
- Command languages and drivers: SCPI and ModBus, LabVIEW, IVI
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 0 bis 750 V | |
| Ausgangsstrom | 6 A | |
| Breite | 482.6 mm | |
| Eingangsspannungsbereich | 110-240 V | |
| Höhe | 88 mm | |
| Leistung | 1500 W | |
| Tiefe | 462 mm | |
| Wirkungsgrad | 95 % | |
| Ausgangsstrombereich | 0 bis 6 A |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85043200 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
