46-2828.1CV0.001 | eao

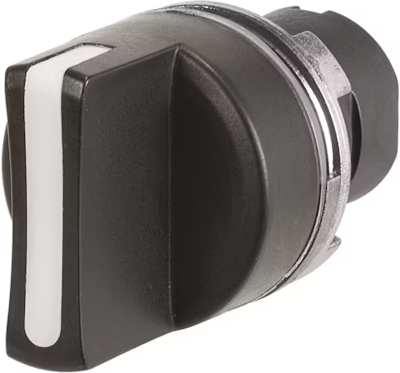

Actuator, Ø 22.3 mm, Ø 29 mm, non illuminative, Black, short, round, Black, Plastic, Maintained - Maintained, IP65, IK06
Unit Price (€ / pc.)
12.3879 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Total Price:
12.39 € *
Price list
Quantity
Price per unit*
1 pcs.
12.3879 €
5 pcs.
11.7334 €
10 pcs.
11.1503 €
15 pcs.
10.4482 €
*incl. VAT plus shipping costs
**Subject to prior sale
Actuator, 46-2828.1CV0.001, eao
Actuator, Ø 22.3 mm, Ø 29 mm, non illuminative, Black, short, round, Black, Plastic, Maintained - Maintained, IP65, IK06.
Technical specifications
| Type of mounting | Panelmontage | |
| can be illuminated | No | |
| Collar shape of the front frame | rund | |
| Rotation angle | 90° | |
| Installation diameter | 22.3 mm | |
| Actuator colour | schwarz/weiß | |
| Front ring colour | schwarz | |
| Contact function | rastend | |
| Product type | Wahltaster | |
| Protection class | IP65 | |
| Trigger position key | 1 + 2 |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85365007 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
