111786 | EATON
Key switch, unlit, latching, waistband round, black, front ring silver gray, 60°, trigger position 0, mounting Ø 22.5 mm, 111786
Order No.: 82P0837
EAN: 4015081113361
MPN:
111786
M22-WRS-MS5-A1
Unit Price (€ / pc.)
71.5071 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
71.51 € *
Price list
Quantity
Price per unit*
1 pcs.
71.5071 €
3 pcs.
68.4131 €
5 pcs.
65.5809 €
*incl. VAT plus shipping costs
**Subject to prior sale

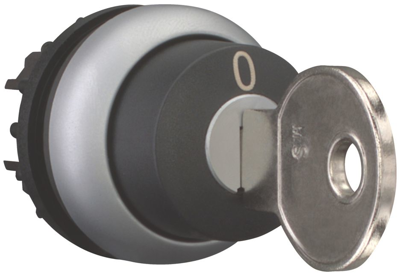

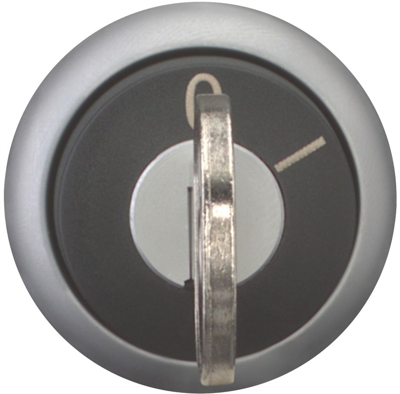

Key switch, 111786, EATON
The actuator is key-operated, maintained, and features two positions. It is designated as MS5, with a key that is not withdrawable and a bezel made of titanium.
Technical specifications
| Version | key switch | |
| can be illuminated | No | |
| Collar shape of the front frame | round | |
| Rotation angle | 60° | |
| Installation diameter | 22.5 mm | |
| Actuator colour | black | |
| Front ring colour | silver gray | |
| Contact function | latching | |
| Protection class | IP66 | |
| Trigger position key | 0 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
