207348 | EATON

Main switch, rotary actuator, 3 pole, 63 A, (W x H x D) 160 x 180 x 139 mm, surface mounting, 207348

Order No.: 82P0248
EAN: 4015082073480
MPN:
207348
P3-63/I4/SVB/HI11

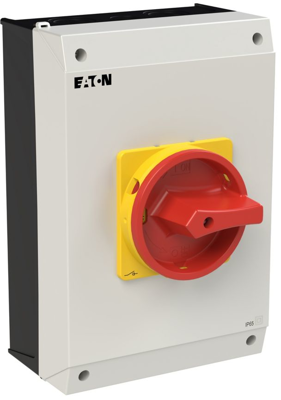

207348 EATON Circuit Breakers Image 1

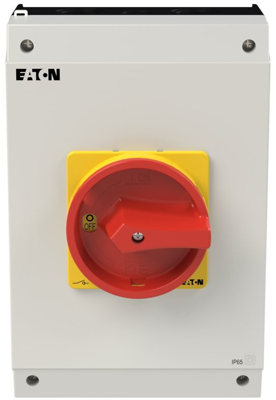

207348 EATON Circuit Breakers Image 2

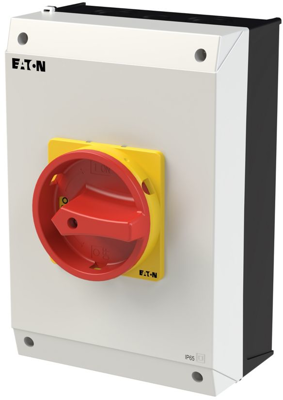

207348 EATON Circuit Breakers Image 3
Image may differ
Unit Price (€ / pc.)
165.8027 € *
Available: 1 pcs.
Leadtime: 1 Week **
Total Price:
165.80 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
165.8027 €

Main switch, 207348, EATON

The main switch, rated at 63 A, is designed for surface mounting and features three poles, including one normally open (N/O) and one normally closed (N/C) contact. It is equipped with an emergency shutdown function, complemented by a red rotary handle and a yellow locking ring.

Technical specifications
Actuator Drehbetätiger
Width 160 mm
Permanent current 63 A
Height 180 mm
Assembly Aufbaumontage
Pin number 3-polig
Product type Hauptschalter
Degree of protection (IP) IP65
Depth 139 mm
Logistics
Country of origin GB
Customs tariff number 85365015
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
