207401 | EATON
Main switch, Rotary actuator, 4 pole, 20 A, (W x H x D) 65 x 74 x 111 mm, flush mounting, 207401
Order No.: 82P0279
EAN: 4015082074012
MPN:
207401
Unit Price (€ / pc.)
50.1942 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
50.19 € *
Price list
Quantity
Price per unit*
1 pcs.
50.1942 €
3 pcs.
48.0165 €
5 pcs.
46.0292 €
*incl. VAT plus shipping costs
**Subject to prior sale

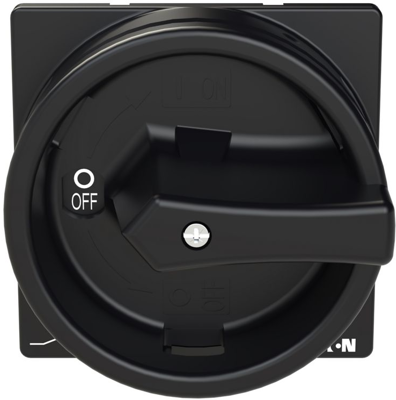

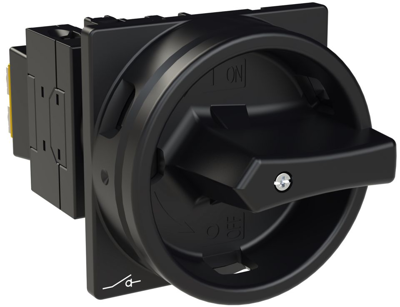

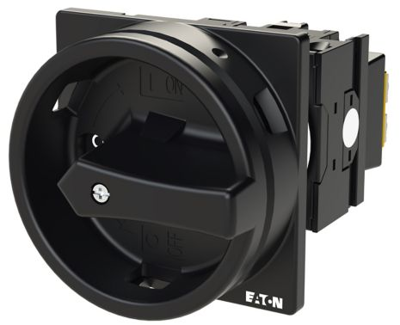

Main switch, 207401, EATON
The main switch, T0, rated at 20 A, is designed for flush mounting and features a two-contact unit with three poles plus neutral. It includes a STOP function and is equipped with a black rotary handle and a locking ring.
Technical specifications
| Actuator | Rotary actuator | |
| Width | 65 mm | |
| Permanent current | 20 A | |
| Height | 74 mm | |
| Assembly | flush mounting | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP65 | |
| Depth | 111 mm |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Perfluorobutane sulfonic acid (PFBS) and its salts |
