199325 | EATON
Auxiliary switch, 0.5 A, 250 VDC, 1 Form A (N/O) + 1 Form B (N/C), push-in, 199325
Order No.: 82P0699
EAN: 4015081974092
MPN:
199325
NHI-E-11-PKZ0-PI
Unit Price (€ / pc.)
15.7556 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
15.76 € *
Price list
Quantity
Price per unit*
1 pcs.
15.7556 €
3 pcs.
14.9821 €
5 pcs.
14.2800 €
10 pcs.
13.4470 €
*incl. VAT plus shipping costs
**Subject to prior sale

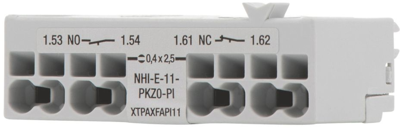

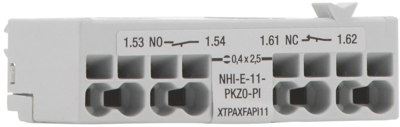

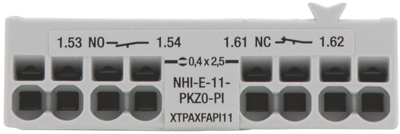

Auxiliary contact, 199325, EATON
The standard auxiliary contact, designated as NHI-E, features one normally open (N/O) and one normally closed (N/C) terminal. It can be installed at the front and is equipped with push-in terminals.
Technical specifications
| Anschluss | Push-in | |
| Ausführung | Hilfsschalter | |
| Bemessungsspannung (AC) | 440 V | |
| Bemessungsspannung | 250 VDC | |
| Montage | Frontmontage | |
| Nennstrom | 0.5 A | |
| Schaltfunktion | 1 Schließer + 1 Öffner |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85365080 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
