239588 | EATON

Power contactor, 3 pole, 190 A, 3 Form A (N/O), coil 190-240 VAC, screw connection, 239588

Order No.: 82P0513
EAN: 4015082395889
MPN:
239588
DILM150(RAC240)
Series: DILM
EATON

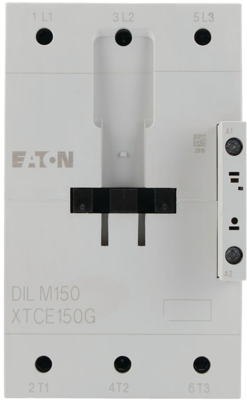

239588 EATON Contactors Image 1

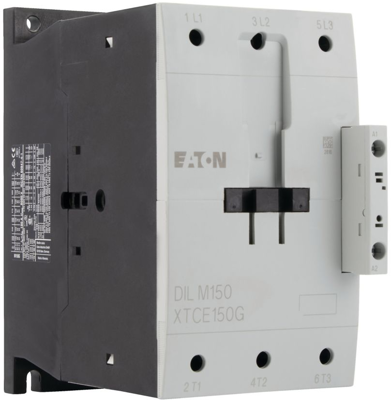

239588 EATON Contactors Image 2

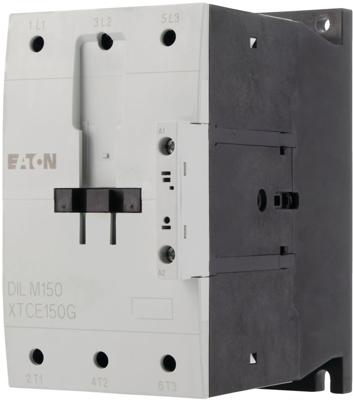

239588 EATON Contactors Image 3
Image may differ
Unit Price (€ / pc.)
625.2736 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
625.27 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
625.2736 €

Contactor, 239588, EATON

Three-pole contactor rated for 380 V to 400 V and 75 kW, model RAC 240, operates at 190-240 V with a frequency of 50/60 Hz, designed for AC applications and featuring screw terminals.

Technical specifications
Connection screw connection
Version power contactor
rated voltage (AC) 690 V
Rated current 190 A
Pin number 3 pole
Latching switching function 3 Form A (N/O)
Degree of protection (IP) IP00
Control Voltage 190-240 VAC
Logistics
Country of origin RO
Customs tariff number 85364900
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
