276537 | EATON

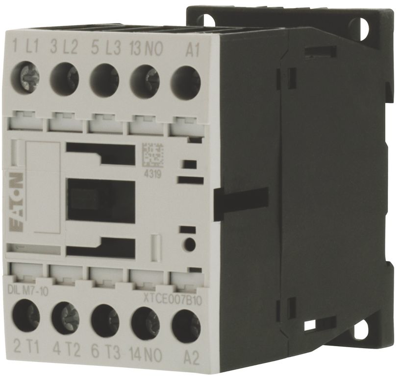

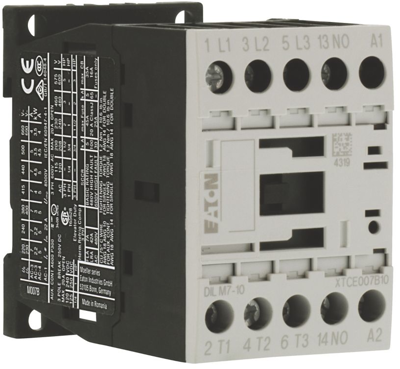

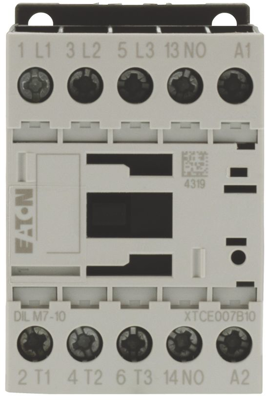

Power contactor, 3 pole, 22 A, 1 Form A (N/O), coil 24 VAC, screw connection, 276537
Unit Price (€ / pc.)
40.0792 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
40.08 € *
Price list
Quantity
Price per unit*
1 pcs.
40.0792 €
3 pcs.
38.3418 €
5 pcs.
36.7591 €
*incl. VAT plus shipping costs
**Subject to prior sale
Contactor, 276537, EATON
A three-pole contactor rated for 380 V to 400 V and capable of handling 3 kW, featuring one normally open contact, operates on 24 V at 50 Hz with AC power supply, and is equipped with screw terminals.
Technical specifications
| Connection | screw connection | |
| Version | power contactor | |
| rated voltage (AC) | 690 V | |
| Rated current | 22 A | |
| Pin number | 3 pole | |
| Latching switching function | 1 Form A (N/O) | |
| Degree of protection (IP) | IP20 | |
| Control Voltage | 24 VAC |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
