266104 | EATON
Position switch, 1 Form A (N/O) + 1 Form B (N/C), spring rod, cage clamp, IP66/IP67, 266104
Order No.: 82P0745
EAN: 4015082661045
MPN:
266104
LS-11S/S
Unit Price (€ / pc.)
37.6278 € *
Available: 2 pcs.
Leadtime: 1 Week **
Total Price:
37.63 € *
Price list
Quantity
Price per unit*
1 pcs.
37.6278 €
3 pcs.
35.9975 €
5 pcs.
34.4981 €
*incl. VAT plus shipping costs
**Subject to prior sale

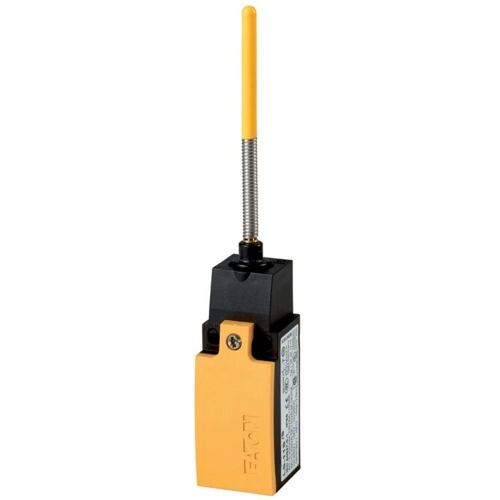

Position switch, 266104, EATON
The device features a position switch with a spring-rod actuator, comprising a complete unit that includes one normally open (N/O) and one normally closed (NC) snap-action contact. It is equipped with a cage clamp and is constructed from insulated material, suitable for operating temperatures ranging from -25 to +70 °C, and is colored yellow.
Technical specifications
| Connection | Käfigklemme | |
| Actuator | Federstab | |
| Latching switching function | 1 Schließer + 1 Öffner | |
| Degree of protection (IP) | IP66/IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
