229492 | EATON
Potentiometer with rotary switch, 47 kΩ, 0.5 W, linear, screw connection, 229492
Order No.: 82P0778
EAN: 4015082294922
MPN:
229492
M22-R47K
Unit Price (€ / pc.)
67.0446 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
67.04 € *
Price list
Quantity
Price per unit*
1 pcs.
67.0446 €
3 pcs.
64.1410 €
5 pcs.
61.4754 €
*incl. VAT plus shipping costs
**Subject to prior sale

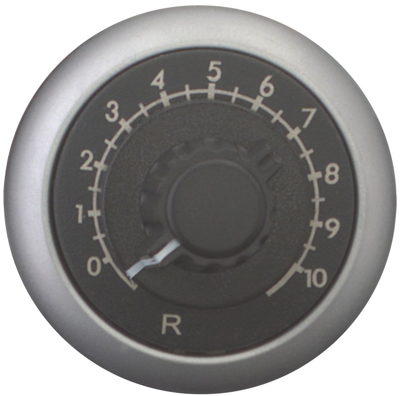

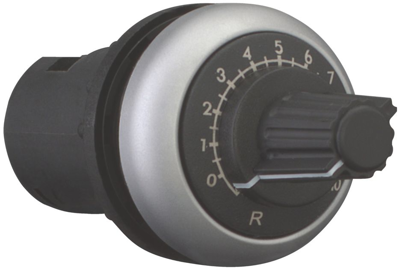

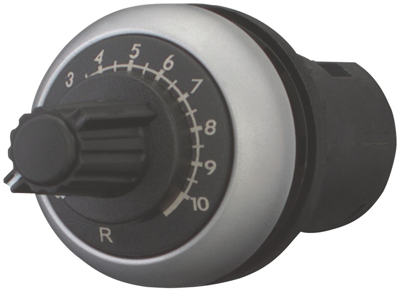

Potentiometer, 229492, EATON
The potentiometer is a classical model, designated M22, with a diameter of 22.5 mm, featuring a resistance of 47 kΩ and a power rating of 0.5 W. The bezel is made of titanium.
Technical specifications
| ohmic resistance | 47 kΩ | |
| Connection | screw connection | |
| Version | rotary potentiometer | |
| Width | 29 mm | |
| Mechanic rotary range | 285 ° | |
| Length | 70 mm | |
| Power | 0.5 W | |
| max. number of revolutions | 1 | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -25 °C | |
| Assembly | straight | |
| Track Taper | linear |
Download
Logistics
| Country of origin | MA |
| Customs tariff number | 85334010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
