48431 03103 | EBE
Angle pulse encoder, 30 V, impulses 32, 48431 03103
Unit Price (€ / pc.)
94.9144 € *
Available: 68 pcs.
Leadtime: On Request **
Total Price:
94.91 € *
Price list
Quantity
Price per unit*
1 pcs.
94.9144 €
5 pcs.
89.2143 €
15 pcs.
85.7990 €
50 pcs.
82.0029 €
150 pcs.
78.5876 €
*incl. VAT plus shipping costs
**Subject to prior sale

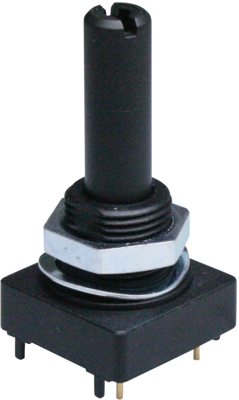

Angular pulse encoder, 48431 03103, EBE
For fast and simple setup of digital values in positive or negative direction. With mechanical detent and gold contacts; Breaking capacity: max. 1.5 VA. Switching voltage: maximum 30 V. Switching current: max. 50 mA. Open-circuit current (at +20 °C): max. 1.0 A. Test voltage: 500 V/50 Hz (60 s). Pulses per output: 32 pulses/rev. Index angle: 11°. Detent graduation: 32 detent positions per revolution. Rotary direction detection via two separate outputs. Connections: solder pins. Insulator: PBTB. Operating temperatures: -25 to +85 °C. Soldering temperature: +260 °C/5 s.
Type: BG 16, angular pulse encoder.
Technical specifications
| Version | angle pulse encoder | |
| Voltage | 30 V | |
| Pulses per revolution | 32 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85432000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
