48432 64003 | EBE
Step rotary switches, 3 pole, 3 stage, 60°, On-On-On, interrupting, 500 mA, 200 V, 48432 64003
Unit Price (€ / pc.)
35.6881 € *
Available: 0 pcs.
Leadtime: On Request **

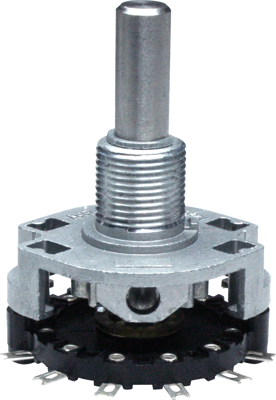

Multistep rotary switches, type EBE SM 25.
For demanding applications, vibration resistant, low mounting depth; Switching action: break before make. Switching voltage: max. 200 VAC. Switching current: max. 500 mA. Breaking capacity: max. 6.0 VA/W. Test voltage: 750 V/50 Hz. With silver-plated contacts, contact banks on Noryl, open version for wiring.
Type: 3 x 3 contacts, 1 contact bank
Technical specifications
| Connection | solder connection | |
| Number of steps | 3 | |
| Version | Rotary step switch | |
| Rated voltage | 200 V | |
| Pin number | 3 pole | |
| Switching Mode | interrupting | |
| Breaking capacity | 6 VA | |
| Shift position | On-On-On | |
| switching current | 500 mA | |
| Switching angle | 60 ° |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365015 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
