48434 41006 | EBE
Step rotary switches, 1 pole, 12 stage, 30°, interrupting, 130 mA, 150 V, 48434 41006
Unit Price (€ / pc.)
3.6057 € *
Available: 0 pcs.
Leadtime: On Request **

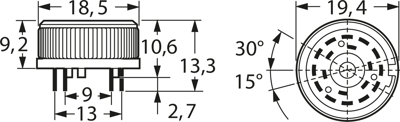

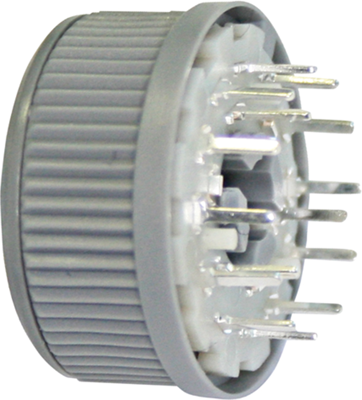

Multistep rotary switches, type EBE SB 20 AD.
Miniature design with break before make action in closed button design. 130 mA at 150 V AC/DC. Silver-plated contacts for PCB mounting, 6.0-mm hollow shaft; Note: index pins are available on separate order.
Without shaft, type SB 20 F.
With 6.0 mm shaft shoulder.
Type: 1 x 12 contacts, 1 contact bank
Technical specifications
| Connection | PCB connection | |
| Number of steps | 12 | |
| Version | Rotary step switch | |
| Rated voltage | 150 V | |
| Pin number | 1 pole | |
| Switching Mode | interrupting | |
| Breaking capacity | 5 VA | |
| switching current | 130 mA | |
| Switching angle | 30 ° |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365015 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
