48435 26007 | EBE

Encoding rotary switch, 10 pole, BCD, 100 mA/30 V AC/DC, 48435 26007

Order No.: 17G347
EAN: 4099889202564
MPN:
48435 26007
SC17-1-54-D-25-A-10-AU-1-A
Series: SC 17
EBE
48435 26007 EBE Slide Switches and Coding Switches
Image may differ
Unit Price (€ / pc.)
65.6523 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
65.65 € *
*incl. VAT plus shipping costs
**Subject to prior sale
25 pcs.
65.6523 €

Rotary coding switches, type EBE SC 17.

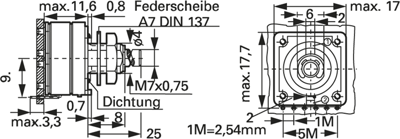

With solid gold contacts and PCB terminals; Version: BCD (10-pole) or hexadecimal code (16-pole), 1 level. Insulation material (level/rotor): mold, high temperature-resistant (Di)/hard fabric (EP). End stops: fixed setting. Solder pins. Bushing mount: M 7 x 0.75. Shaft: D 4.0 mm, L 25 mm, for knob attachment. Breaking capacity: maximum 3.0 VA. Switching voltage: maximum 30 V AC/DC. Switching current: maximum 100 mA. Test voltage: 100 VAC. Contact resistance (rated value): 100 mohm. Capacitance between two contacts: maximum 2.0 pF.

For top adjustment.

Type: BCD code + even parity

Technical specifications
Connection PCB pin
Version encoding rotary switch
Actuation on top
Coding BCD
contact surface gold-plated
Pin number 10 pole
Breaking capacity 100 mA/30 V AC/DC
Logistics
Country of origin DE
Customs tariff number 85365015
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
