049095140000 | Eberle
Installation contactor, 20 A, 500 V, 4 Form A (N/O), coil 230 VAC, 049095140000
Order No.: 06N6886
EAN: 4017254105753
MPN:
049095140000
ISCH20-4S
Unit Price (€ / pc.)
38.9011 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
38.90 € *
Price list
Quantity
Price per unit*
1 pcs.
38.9011 €
5 pcs.
36.9376 €
15 pcs.
35.7476 €
50 pcs.
34.3315 €
150 pcs.
33.2486 €
*incl. VAT plus shipping costs
**Subject to prior sale

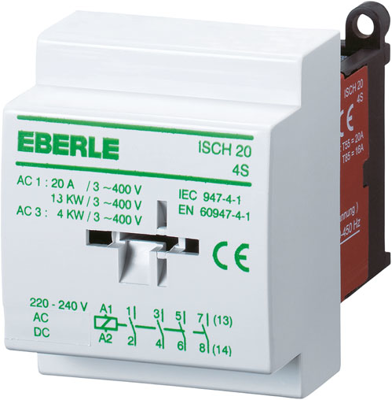

Installation contactors, type Eberle ISCH 20.

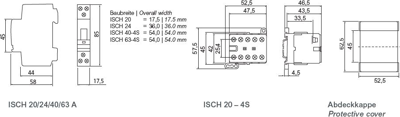

For DIN rail mounting and AC 1 operation, low hum; Breaking capacity: 20 A/230 VAC. Dimensions: W 17.5, H 85, D 58 mm.
With 4 x NO, type ISCH 20.
Dimensions: W 52.5, H 63, D 58 mm.
Type: ISCH 20, 4 x NO
Technical specifications
| Version | installation contactor | |
| Rated Voltage | 500 V | |
| Assembly | DIN rail | |
| Rated current | 20 A | |
| Latching switching function | 4 Form A (N/O) | |
| Degree of protection (IP) | IP20 | |
| Control Voltage | 230 VAC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
