052472143294 | Eberle
Temperature controller, 230 VAC, 40 to 100 °C, white, 052472143294
Order No.: 06N808
EAN: 4017254073861
MPN:
052472143294
UTR 100
Unit Price (€ / pc.)
116.2392 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
116.24 € *
Price list
Quantity
Price per unit*
1 pcs.
116.2392 €
10 pcs.
109.3253 €
*incl. VAT plus shipping costs
**Subject to prior sale

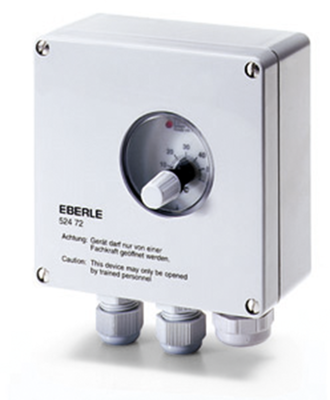

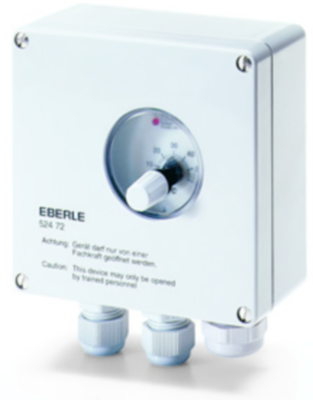

Temperature controllers for remote sensors, Eberle UTR.
For outside and inside settings, for wall mounting, with adjustment knob and scale
Display: LED for Relay On and sensor failure
Operation: 230 V/48 to 62 Hz
Ambient temperatures device: - 20 to +50 °C
Switching current: max. 16 (4) A
Contact: 1 CO electrically isolated
Connection: screw terminals
Variable switching hysteresis (up to +100 °C): approx. 0.5 K to 10 K
Temperature derating: approx. 5.0 K
Degree of protection: IP 65
Dimensions: H 120, W 120, D 56 mm.
Technical specifications
| Version | temperature controller | |
| Colour | white | |
| max. operating temperature | 100 °C | |
| min. operating temperature | 40 °C | |
| Assembly | wall mounting | |
| Degree of protection (IP) | IP65 | |
| Voltage | 230 VAC |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 90321020 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
