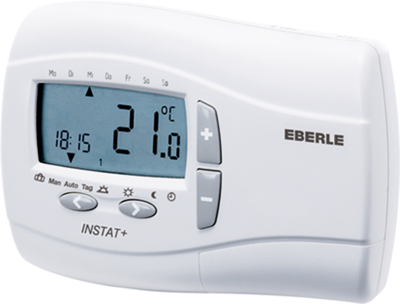

053710291900 | Eberle
Floor heating controller, 230 VAC, 7 to 32 °C, white, 053710291900
Thermostat timers, Eberle INSTAT+.
Functions: holiday and party function, selectable programs (all days the same, weekdays/off-days, daily individually), variable switching times (2, 4, 6), security against unauthorized access, adaptable temperature display, changeover of effective direction for heating/cooling, anti-freeze function, access protection/child protection
Rated voltage: 230 VAC/50 Hz
Switching current: 10 mA to 16 (2) A
Output: relay with CO contact, electrically isolated
Output signal: pulse width modulation (PWM)
Switching time: 1.0 min
Degree of protection: IP 30
Safety class: II
Ambient temperatures: 0 to +40 °C
Ambient humidity: 25 to 85 %.
For battery operation, type INSTAT+ 2R.
Voltage supply: 2 x AA 1.5 V alkaline batteries
Temperature settings: +7.0 to +32 °C.
| Version | Floor heating controller | |
| Colour | white | |
| max. operating temperature | 32 °C | |
| min. operating temperature | 7 °C | |
| Degree of protection (IP) | IP30 | |
| Voltage | 230 VAC |
| Country of origin | GB |
| Customs tariff number | 90321020 |
