517721051100 | Eberle

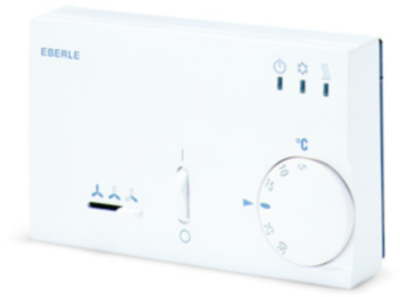

Climate controller, 230 VAC, 5 to 30 °C, white, 517721051100
Order No.: 06N5166
EAN: 4017254109027
MPN:
517721051100
Unit Price (€ / pc.)
172.3358 € *
Available: 0 pcs.
Leadtime: On Request **
Climate controller, electronic for wall mounting. Suitable for controlling 2-pipe systems only in conjunction with a pipe feeder controller (e.g. RAR), 4-pipe systems, cooling only or split units with electric heating. Adjustable neutral/dead zone from 0.5 - 8.5 K. Switch on/off, switch fan fast/medium/slow. Indicator lamps: mains/heating/cooling. Operation also possible with remote sensor (extendable up to 50m). Range restriction in the setting knob as a cost brake. Surface mounting or directly on flush-mounted box with vertical mounting holes.
Technical specifications
| Version | Klimaregler | |
| Colour | weiß | |
| max. operating temperature | 30 °C | |
| min. operating temperature | 5 °C | |
| Assembly | Wandmontage | |
| Degree of protection (IP) | IP30 | |
| Voltage | 230 VAC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 90321020 |
