517818152100 | Eberle

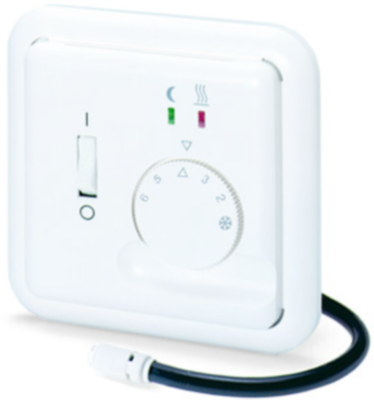

Temperature controller, 230 VAC, 5 to 30 °C, white, 517818152100
Order No.: 06N5174
EAN: 4017254136764
MPN:
517818152100
Unit Price (€ / pc.)
148.6072 € *
Available: 0 pcs.
Leadtime: On Request **
Controller electronic with timer function for recording the room temperature and limiting the floor temperature, for flush mounting. Suitable for the control of electric floor or electric direct heating. Temperature setback, optionally 3K or 5K, possible via external timer. Control indicators: Controller requests heat on / setback operation. Mains switch 2-pole. In case of sensor error emergency operation with 30 % heating. With 4m remote sensor (extendable up to 50m) included. Mounting in 55mm flush-mounted box.
Technical specifications
| Version | Temperaturregler | |
| Colour | weiß | |
| max. operating temperature | 30 °C | |
| min. operating temperature | 5 °C | |
| Assembly | Unterputz | |
| Voltage | 230 VAC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 90321020 |
