527817355100 | Eberle

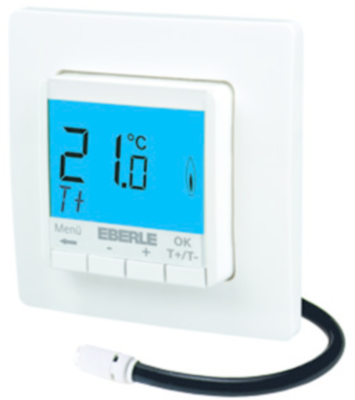

Room temperature controller, 230 VAC, 5 to 30 °C, white, 527817355100
Order No.: 06N5177
EAN: 4017254156779
MPN:
527817355100
Unit Price (€ / pc.)
104.3035 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
104.30 € *
Price list
Quantity
Price per unit*
1 pcs.
104.3035 €
10 pcs.
98.0203 €
*incl. VAT plus shipping costs
**Subject to prior sale
Flush-mounted thermostat is suitable for the control of direct electric heating or hot water floor heating. Very large display, backlighting in blue is off, briefly on after pressing a button. Single-line text display for self-explanatory operation. Easy switching between 2 temperatures (e.g. comfort and setback temperature). ECO input for activating a freely adjustable temperature, e.g. for night setback. Short-time timer (party) for changing the temperature by the hour. Energy consumption display (switch-on time * costs). Frost protection. Temperature setting range can be limited. Temperature display adaptable to local conditions. Unauthorized access protection. PWM or 2-point control method. Adaptation to valves normally open. Heating or cooling adjustable. Valve protection. Minimum and maximum floor temperature adjustable. Permanent display of the floor temperature. With 4m remote sensor (extendable up to 100m) included. Mounting in 55mm flush-mounted box.
Technical specifications
| Version | room temperature controller | |
| Colour | white | |
| max. operating temperature | 30 °C | |
| min. operating temperature | 5 °C | |
| Assembly | Flush-mounted | |
| Degree of protection (IP) | IP30 | |
| Voltage | 230 VAC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 90321020 |
