2214 F/2 TDHHO | ebm-papst
DC axial fan, 24 V, 200 x 220 x 51 mm, 940 m³/h, 66 dB, ball bearing, ebm-papst 2214 F/2 TDHHO
Unit Price (€ / pc.)
326.0957 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
326.10 € *
Price list
Quantity
Price per unit*
1 pcs.
326.0957 €
3 pcs.
316.3139 €
10 pcs.
305.4492 €
25 pcs.
297.2858 €
*incl. VAT plus shipping costs
**Subject to prior sale

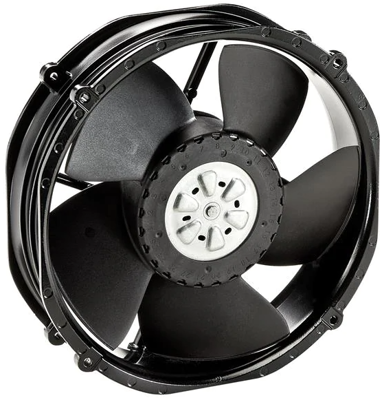

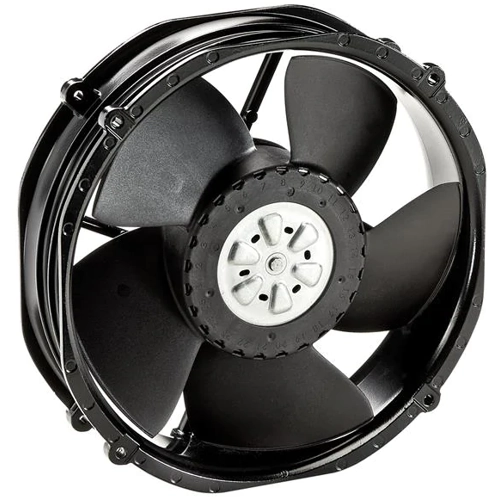

DC Axial fan, 2214 F/2 TDHHO, EBM-PAPST
The 2214 F/2 TDHHO is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Connection via single wires AWG 18, 20 or AWG 22, TR 64, speed signal and control input AWG 22
- Highly efficient and smoothly operating 3-phase fan drive Housing with grounding lug for screw M4 x 8 (Torx)
- Direction of rotation clockwise, viewed toward rotor
- With protection class: IP54
Technical specifications
| Version | DC axial fan | |
| Width | 200 mm | |
| speed | 5000 1/min | |
| Height | 220 mm | |
| Type of bearing | ball bearing | |
| Power consumption | 48 W | |
| Rated voltage | 24 V | |
| Sound pressure level | 66 db | |
| Depth | 51 mm | |
| Volume flow | 940 m³/h |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
