3212 J/2 N-301 | ebm-papst

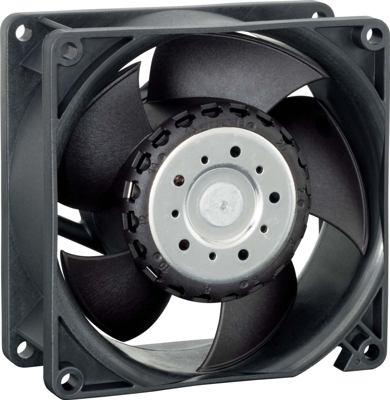

DC axial fan, 12 V, 92 x 92 x 38 mm, 130 m³/h, 69 dB, ball bearing, ebm-papst 3212 J/2 N-301
Unit Price (€ / pc.)
45.9935 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
DC Axial fan, 3212 J/2 N-301, EBM-PAPST
The 3212 J/2 N-301 is a DC axial fan that is widely used in the air-vent exhaust, electronic device cooling, computer ventilation, etc. However, the functioning mechanism of AC fan and DC fan makes a huge difference in the power consumption and output of the industrial fan.
Features
- Electrical connection via 2 leads AWG24, 310 mm long
- Airflow direction air outlet over struts
- Electronic reverse polarity protection
- Electronic locked rotor protection,overload protection is integrated intothe fan circuit
Technical specifications
| Ausführung | DC-Axiallüfter | |
| Breite | 92 mm | |
| Drehzahl | 6000 1/min | |
| Höhe | 92 mm | |
| Lagerart | Kugellager | |
| Leistungsaufnahme | 7 W | |
| Nennspannung | 12 V | |
| Schalldruckpegel | 69 db | |
| Tiefe | 38 mm | |
| Volumenstrom | 130 m³/h |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 84145925 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
