3214 JH4 | ebm-papst
DC axial fan, 24 V, 92 x 92 x 38 mm, 280 m³/h, 73 dB, ball bearing, ebm-papst 3214 JH4
Unit Price (€ / pc.)
100.6383 € *
Available: 2 pcs.
Leadtime: 7 Weeks **
Total Price:
100.64 € *
Price list
Quantity
Price per unit*
1 pcs.
100.6383 €
5 pcs.
94.6050 €
15 pcs.
90.9755 €
50 pcs.
86.9414 €
*incl. VAT plus shipping costs
**Subject to prior sale

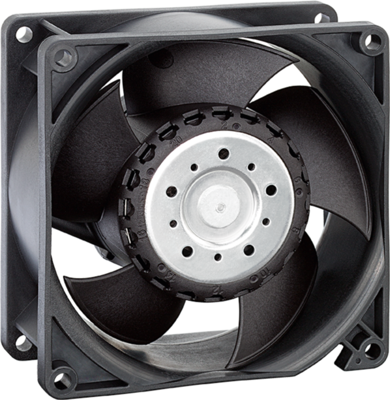

DC Axial fan, 9693520181, EBM-PAPST
The 9693520181 Axial DC fan is a type of fan that blow air along the axis of the fan-that is, the fancurved blades force air to move in parallel with the shaft on which the blades rotate. This fan can produce variable airflow and create higher flow rates than centrifugal fan.
Features
- Cable connection is with single strands AWG 24 and is stripped and tinned
- Electronic commutation completely integrated
- Protected against reverse polarity and blocking
- Material housing: glass fiber reinforced plastic (PBT)
Technical specifications
| Version | DC axial fan | |
| Width | 92 mm | |
| speed | 13000 1/min | |
| Height | 92 mm | |
| Type of bearing | ball bearing | |
| Power consumption | 50 W | |
| Rated voltage | 24 V | |
| Sound pressure level | 73 db | |
| Depth | 38 mm | |
| Volume flow | 280 m³/h |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
