3312 NM | ebm-papst

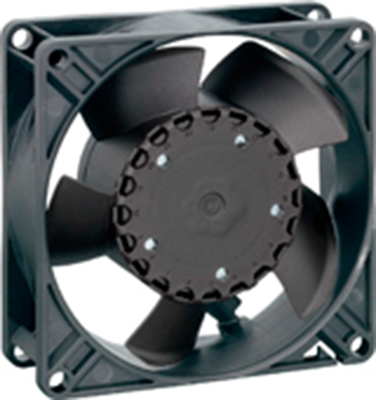

DC axial fan, 12 V, 92 x 92 x 32 mm, 68 m³/h, 29 dB, ball bearing, ebm-papst 3312 NM
Unit Price (€ / pc.)
47.1954 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Total Price:
47.20 € *
Price list
Quantity
Price per unit*
1 pcs.
47.1954 €
5 pcs.
44.3632 €
15 pcs.
42.6734 €
50 pcs.
40.7813 €
150 pcs.
39.0915 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC Axial fan, 3312 NM, EBM-PAPST
The 3312 NM is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Housing GRP1
- Direction of rotation right, viewed on the rotor
- Connection via single strands AWG 24 UL 1061, TR 64
- Moisture protection
Technical specifications
| Version | DC axial fan | |
| Width | 92 mm | |
| speed | 2250 1/min | |
| Height | 92 mm | |
| Type of bearing | ball bearing | |
| Power consumption | 1.3 W | |
| Rated voltage | 12 V | |
| Sound pressure level | 29 db | |
| Depth | 32 mm | |
| Volume flow | 68 m³/h |
Download
Logistics
| Country of origin | HU |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
